Rangkaian Dual 20W Audio Power Amplifier

Written By Unknown on Monday, February 3, 2014 | 8:00 AM





1FEATURES DESCRIPTION
• SPiKe Protection
• Minimal Amount of External Components Necessary than 0.1% THD+N.
• Quiet Fade-In/Out Mute Mode

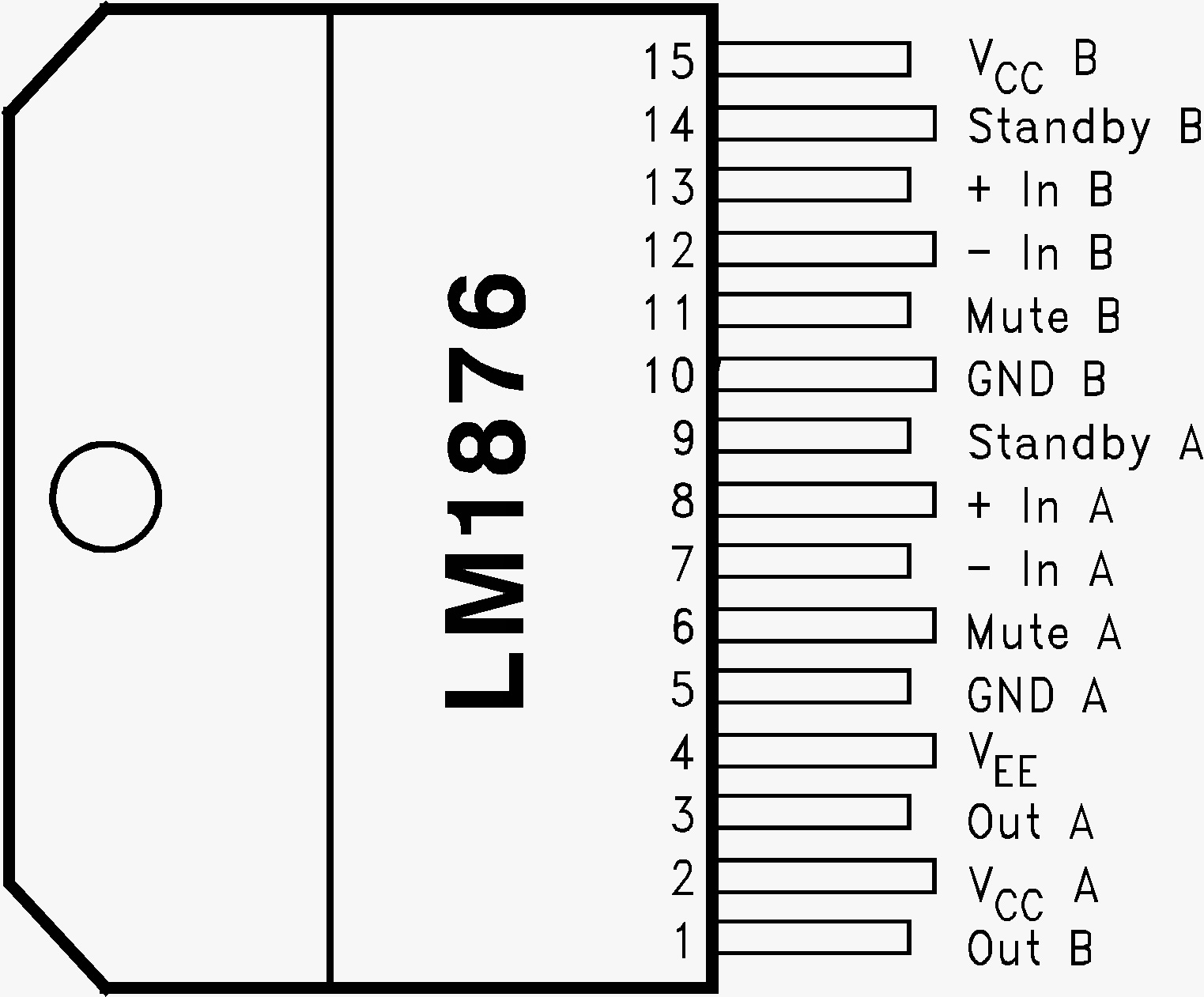

• Standby-Mode • Isolated 15-Lead TO-220 Package (PFM)
• Non-Isolated 15-lead
• Wide Supply Range 20V - 64V

APPLICATIONS,
• High-End Stereo TVs
• Component Stereo
• Compact Stereo

KEY SPECIFICATIONS
• THD+N at 1kHz at 2 x 15W continuous
averageoutput power into 4Ω or 8Ω: 0.1%
(max)
• THD+N at 1kHz at continuous average output
power of 2 x 20W into 8Ω: 0.009% (typ)
• Standby current: 4.2mA (typ)
