Power Amplifier dengan TDA2003

Written By PC786 on Sunday, April 14, 2013 | 3:29 PM

Power Amp. dengan IC TDA2003

Power Amplifier dengan TDA2003,

ini menggunakan IC TDA2003 dengan daya 10 Watt dengan tegangan 8 V-18V sangat praktis. Jangan lupa IC diberi keping pendingin atau heatsink



FEATURES :
*Very Low External Component Required.
*High Current Output ( up to 3 A).
*Low Harmonic and Crossover Distortion.
*Built-in Over Temperature Protection.
*Short Circuit Protection Between all Pins.

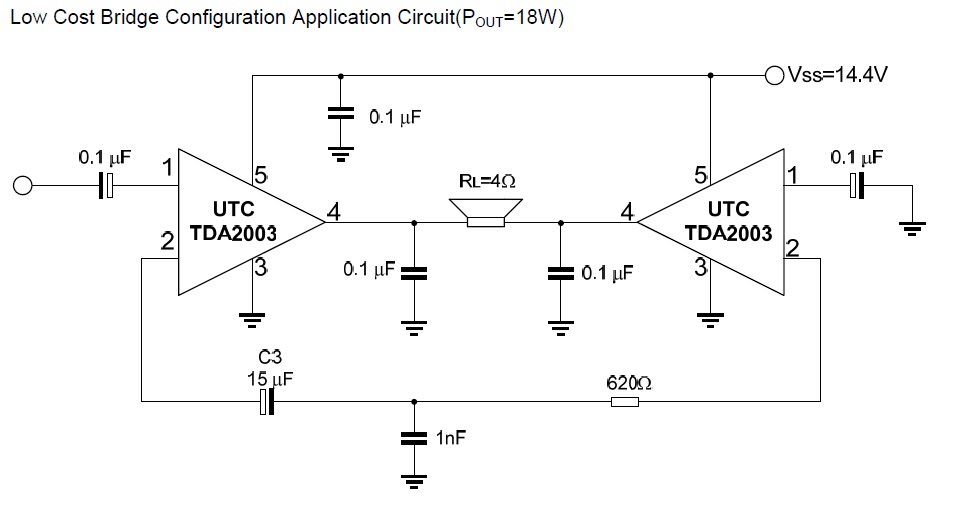

Bridge Power Amplifier TDA2003 - 18 Watt
Rangkaian Bridge Power Amplifer TDA2003 -18 Watt
Untuk menambah daya output, maka dua buah IC TDA2003 bisa dirangkai secara bridge dan power yang dihasilkan mencapai 18 Watt pada tegangan kerja 14 Volt dc.



Share this article :
Posted by PC786 at 3:29 PM
Labels:

13 comments:

  1. ciptengOctober 8, 2015 at 2:05 PM

    good job bro kunjungi 0sbr0.blogspot.com cara membuat musik box + power bank keren (y)

    ReplyDelete
  2. UnknownDecember 8, 2016 at 4:15 PM

    T

    ReplyDelete
  3. UnknownDecember 8, 2016 at 4:15 PM

    Gan ic tda 2003 d ganti tda 2050 bsa gk

    ReplyDelete
  4. UnknownDecember 8, 2016 at 4:18 PM

    Gan ic tda 2003 d ganti tda 2050 bsa gk

    ReplyDelete
  5. Simkada PasuruanJune 27, 2017 at 6:10 AM

    Gak bisa, kalo tda 2030 baru bisa

    ReplyDelete
  6. Simkada PasuruanJune 27, 2017 at 6:11 AM

    This comment has been removed by the author.

    ReplyDelete
  7. Simkada PasuruanJune 27, 2017 at 6:12 AM

    Gak bisa, yg bisa ditukar tda 2030, tda 2050 sama lm 1875

    ReplyDelete
  8. mohammad farsAugust 28, 2017 at 2:47 PM

    This comment has been removed by the author.

    ReplyDelete
  9. UnknownOctober 11, 2017 at 10:37 PM

    Bridge tda2003 sama cv203 bisa ga boss...

    ReplyDelete
  10. UnknownJune 30, 2018 at 3:39 PM

    Sory bos pemula mau tanya.apa TDA2030 APA BISA LANGSUNG JIKA DIGANTI tda2003

    ReplyDelete
  11. UnknownOctober 1, 2018 at 10:20 PM

    Kalo TDA nya kebangar masih bisa di ganti apa gak master?

    ReplyDelete
  12. UnknownFebruary 28, 2020 at 6:04 PM

    Gan minta skema amplifier utk ic type utc2030. Bisa kan..

    terimakasih...
